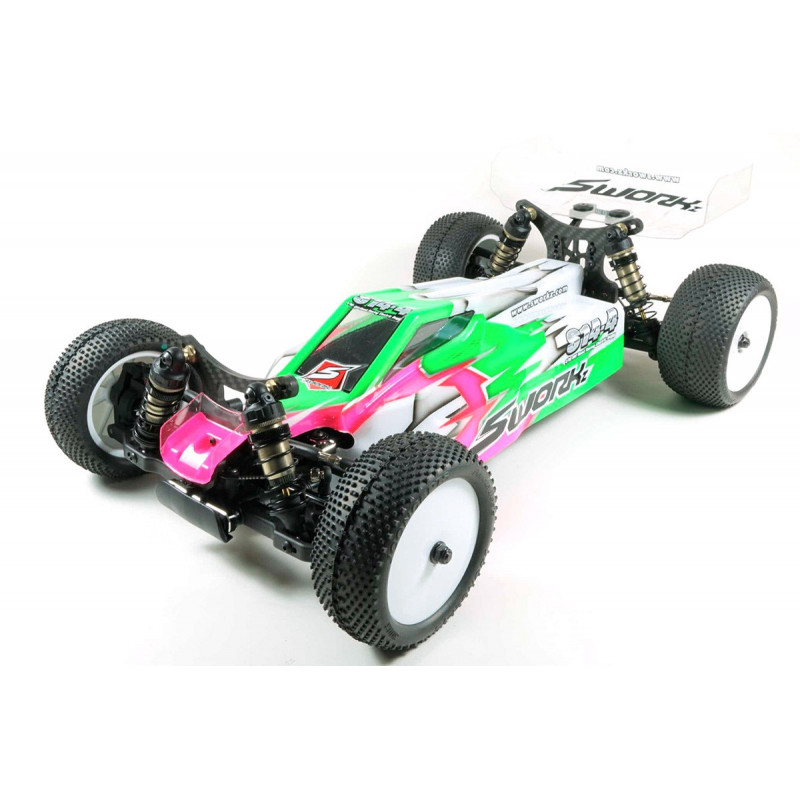

SWORKz S14-4D 1/10 4WD Off-Road Racing Buggy PRO Kit

SWORKz S14-4D (Dirt Edition) 1/10 4WD is designed for racing. It is an evolution of the successful S14-3D and S14-4C chassis. The car's new geometry ensures optimal cornering speed and easy handling on dirt roads and tracks with very low grip.
The S14-4D has a new transmission with adjustable differential on a hard anodized and lightweight T7075 aluminum chassis. The inclination of the chassis can be changed with side protective covers made of different materials. The S14-4D is equipped with the all-new SWORKz 1/10 Pro-Shock system (extended shock body). The shocks feature new plastic Emulsion Precision shock caps, shock pistons with seals. The kit comes standard with a 4mm full carbon version for both front and rear shock towers. Teflon-coated shock pins ensure smooth shock response. Black Line springs, which are well designed with rotating fixed spring mounts, come standard on the SWORKz S14-4D kit. The S14-4D kit features a brand new 5.5mm hinge ball pin system and heavy duty 3.5mm fasteners. Also included is a brand new Ackermann adjustable plate with a lightweight bell crank control system. The S14-4D has new rear slanted lower wishbones that provide a lower shock location resulting in a lower center of gravity. The set is equipped with a differential quick release system that can be mounted in 3 different positions. The gear weight is optimized for the perfect balance between size and strength. The height and angle of the wing holder can be adjusted. The rear part of the S14-4D can be varied in width thanks to the new Synthesis rear hub system and the modularity of the CVA rear part. The SWORKz S14-4D features a slim front stabilizer bar and a brand new rear stabilizer mounting system. The S14-4D comes standard with a center differential for off-road performance. The S14-4D body has good aerodynamics. During the construction of the car, the SWORKz development team focused on the use of materials that meet the highest quality standards. In the S14-4D set you will find only 100% SWORKz quality.

Features:

• T7075 hard anodized and lightweight aluminum chassis
• Adjustable flex system with various side protections
• 4 different battery positions
• Front and rear 4mm carbon fiber/oil shock antler mounts
• Ackerman removable platter
• New system of front and rear stabilizers
• Super light anodized front wheel axles
• Front wing
• Front aluminum shoulder handles
• Easily adjustable Ackerman plate
• Brand new 5.5mm hinge ball pin system
• Brand new 3.5mm connectors
• Adjustable position of the differential
• Differential quick release/change system
• Damper bottom position design with adjustable antler/oil damper fixing position
• Brand New Design SWORKz 1/10 Pro Shock System Oil Shocks (Long Shocks)
• Adjustable rear wing height
• Adjustable rear wing angle
• Rear wheel width adjustable with attached hubs, CVD axle length adjustable
• New Synthesis rear hub system
• Fully adjustable aluminum shoulder handles with square inserts and "SWORKz" engraved.
• Newly designed rear stabilizer bar
• Hexagonal hard anodized rear wheel
• Super lightweight CAD-optimized gearbox
• 2-clutch system with hard anodized discs
• Settings for anti-slip clutches
• High temperature resistant sliding plates
• Precision plastic plugs for oil shock absorbers
• Uniquely designed shock pin bolts
• Hard anodized pins
• Black line shock springs
• Spring holder secured against rotation
• Teflon hard oil shock absorber pistons
• Oil shock absorber body with hard coating
• 6 ball bearings in Servosaver
• Quick release electronics board
• Battery pad included
• Balanced engine position
• Lexan body with optimized aerodynamic design

Specifications:

Includes:

• Chassis kit
• Bright body
• Rear wing
• Front wing
• Shock absorber oil
• Differential oil
• Grease
• Pictograms
• without rims and tires
• without complete electronics
